Will Renault KOLEOS fit in your garage?
Discover its dimensions in detail.Length, height, width...

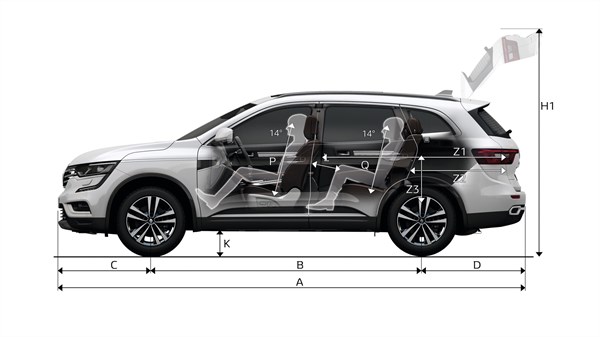

| A | Overall length | 4673 |
| B | Wheelbase | 2705 |
| C | Front overhang | 930 |
| D | Rear overhang | 1038 |
| H1 | with opened tailgate | 2118 |
| K | Ground clearance (unladen) | 210 |

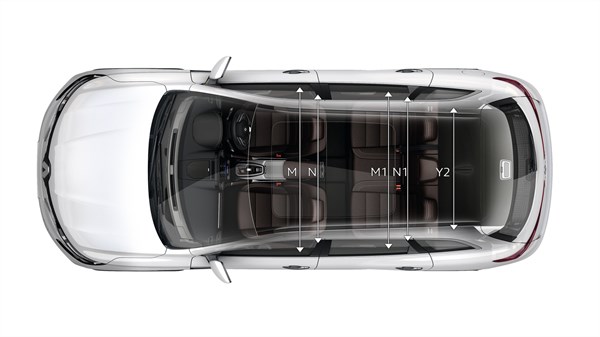

| M/M1 | Elbow width (front/rear) | 1483/1456 |
| N/N1 | Shoulder width (front/rear) | 1449/1419 |
| P | Distance between hip joint & ceiling in front seats | 953 TN/891 TO* |
| Q | Distance between hip joint & ceiling in rear seats | 911 TN/903 TO* |
| Y2 | Interior width between wheel arches | 1066,6 |
| Z1 | Maxi loading length (rear seats folded down) | 1889,3 |
| Z2 | Loading length behind the rear seats | 973,6 |
| Z3 | Height under parcel shelf | 365,5 |

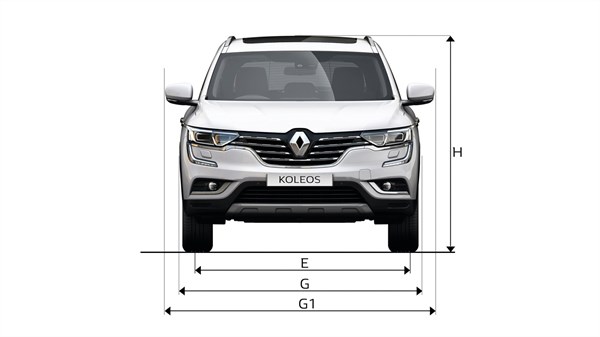

| E | Front track | 1591 |
| G/G1 | Overall width without / with door mirrors | 1843/2063/1864 |
| H | Unladen height / with opened tailgate | 1678 |

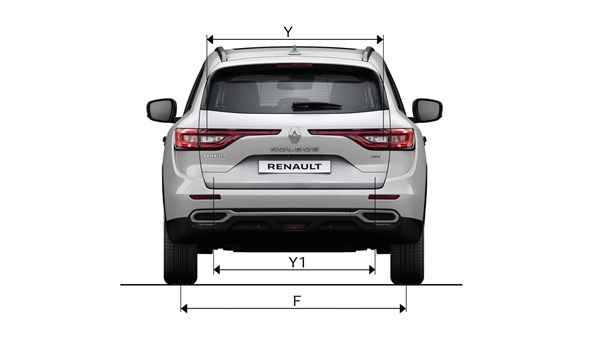

| F | Rear track | 1586 |
| Y | Upper boot width | 1091,7 |
| Y1 | Lower boot width | 1034,8 |
| VDA total boot capacity* | 565 |
*ISO 3832 standard
